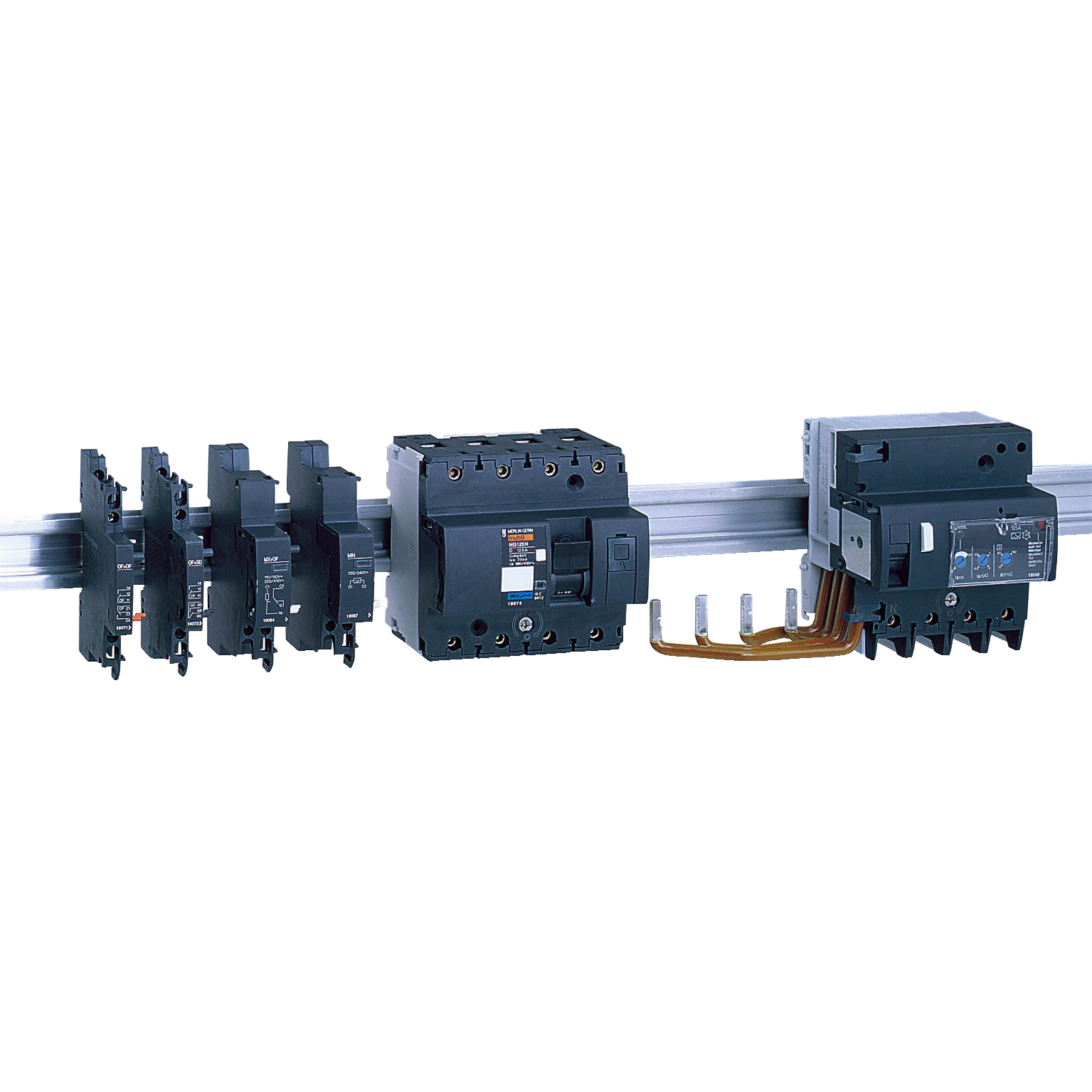

This Acti 9 MX+OF electrical auxiliary is a shunt release device with open/close auxiliary contact. It is dedicated to NG125. This device includes an open/close contact OF to indicate the open or closed position of the circuit breaker. It is provided with a self-interrupting contact. The width in 9mm pitches is 4. The product trips the associated device when it is powered on. The rated operational current is 6A up to 240VAC, 3A for more than 240VAC, 2A up to 48VDC and 1A at 130VDC. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product complies with IEC/EN 60947-5-1 standards.
