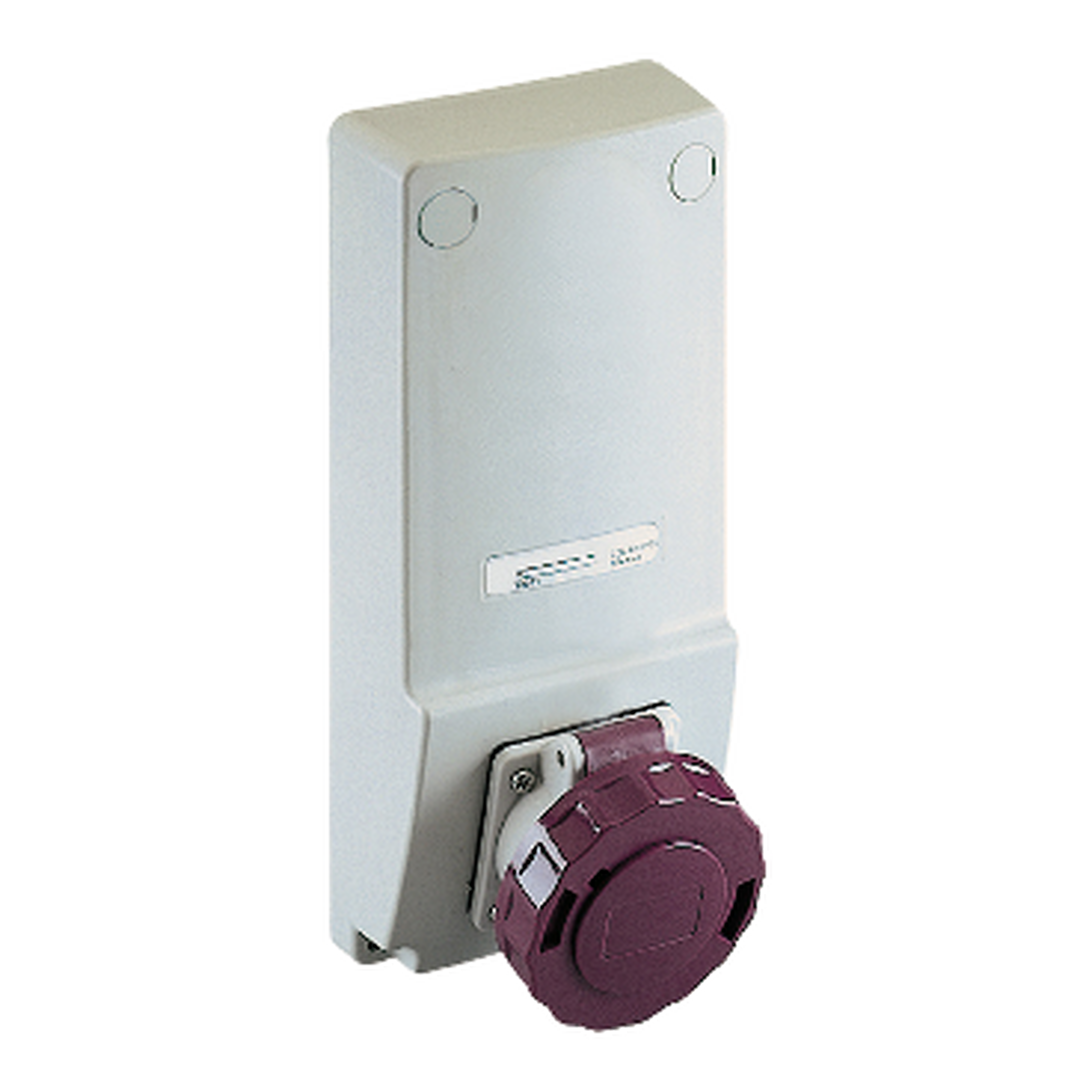

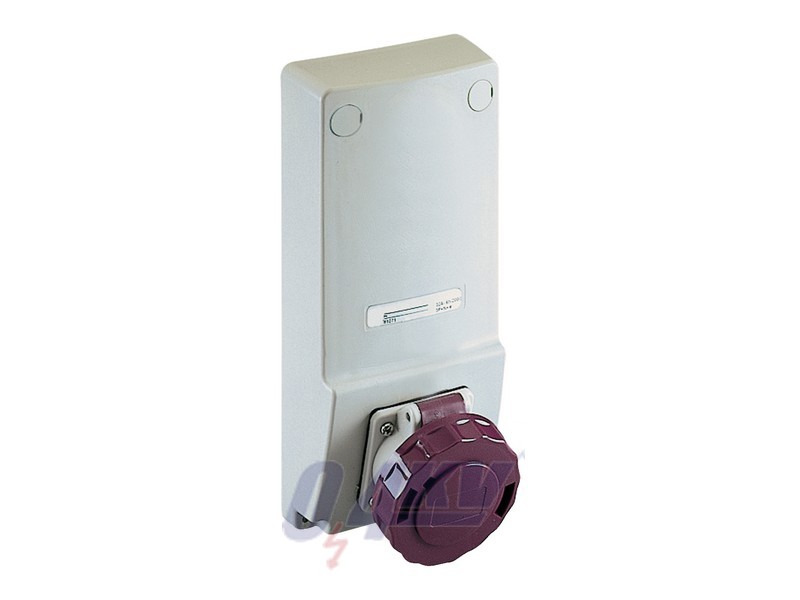

This PratiKa industrial interlocked socket with captive screws connection and 160VA safety transformer is panel-mounted. It has 2P pole, rated current is 16A and the operating voltage is 230VAC for a 24VAC output voltage. The dimensions of the base plate are (W) 103mm x (H) 225mm. The degree of protection is IP65 and IK09. The fire resistance is 750°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 25mm for 6mm² cables. The color of the socket is grey (RAL 7035) with violet easy identification of the operating voltage. The frequency is 50Hz or 60Hz. There is no clock position of contact.
