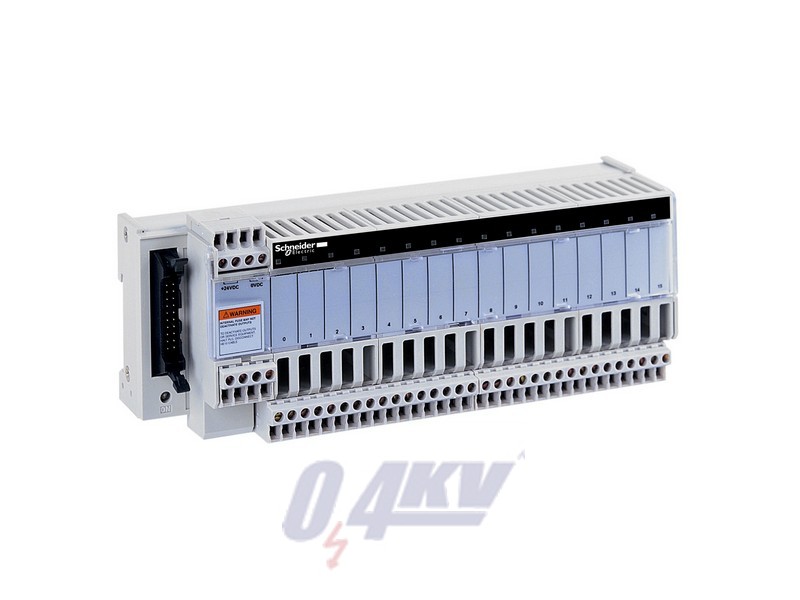

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with soldered solid state output relay, provides 16 channels. It has 2 terminals per channel. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a current of 0.012A per channel. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.37kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
