Modicon STB elosztott I/O, Analóg C ki 2csatornásBasic4-20 kit

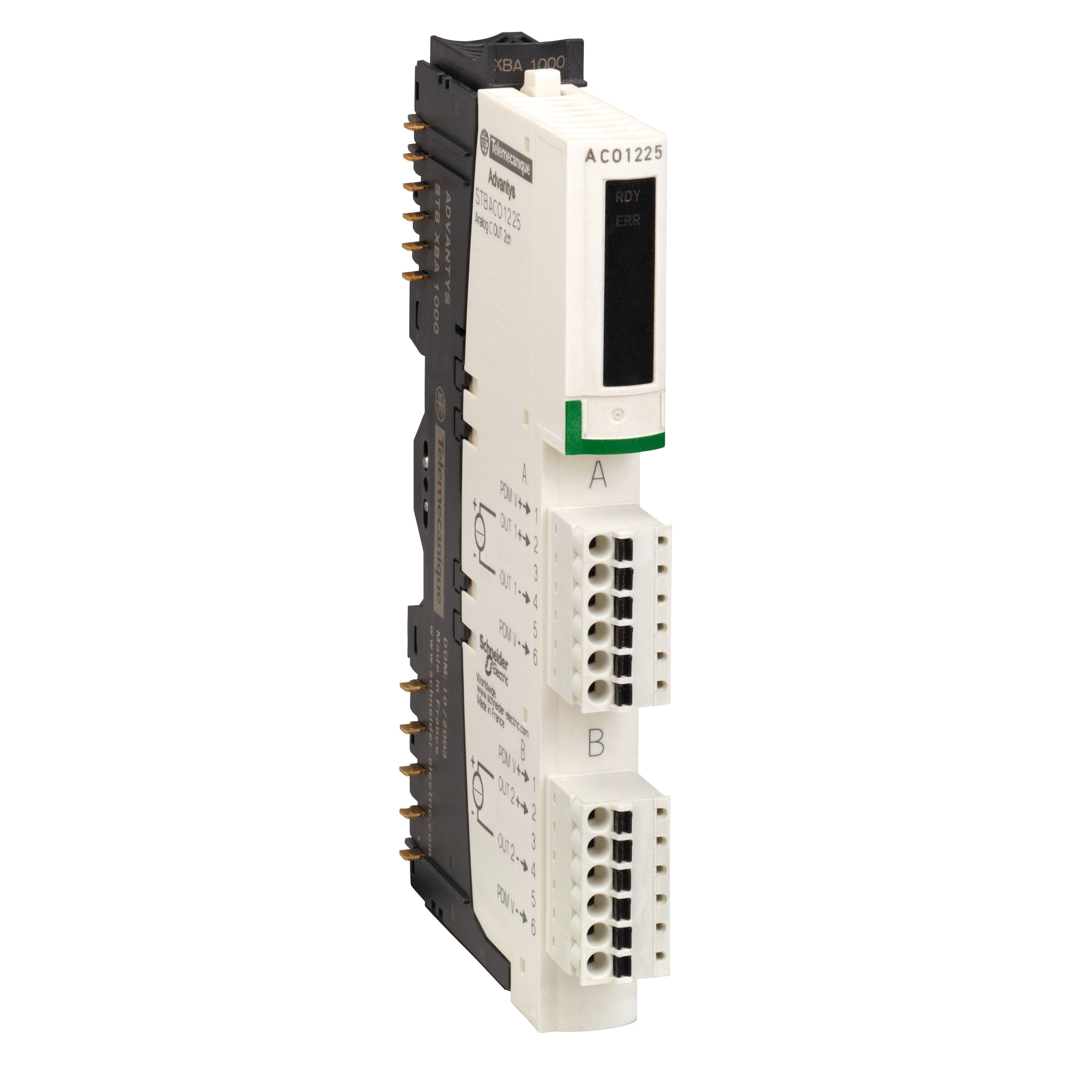

This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic analogue output kit has 2 analogue outputs with 10bit resolution. It is an analogue output kit with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA1000. The kit includes STBXBA1000 base, STBAVI1270 module, STBXTS2100, 6-terminal spring clamp connector and STBXTS1100, 6-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
