| Szinuszos szűrőként alkalmas | hamis |
| Du/dt szűrőként alkalmas | hamis |
| Rádiófrekvenciás zavarszűrő fojtónak alkalmas | hamis |
| Hangfrekvenciás gátnak alkalmas | hamis |
| Primer pólusok száma | 3 |
| Max. névleges üzemi feszültség Ue | 400 V |
| Névleges áram AC-nál | 58 ... 58 A |
| Védettségi fokozat (IP) | IP20 |

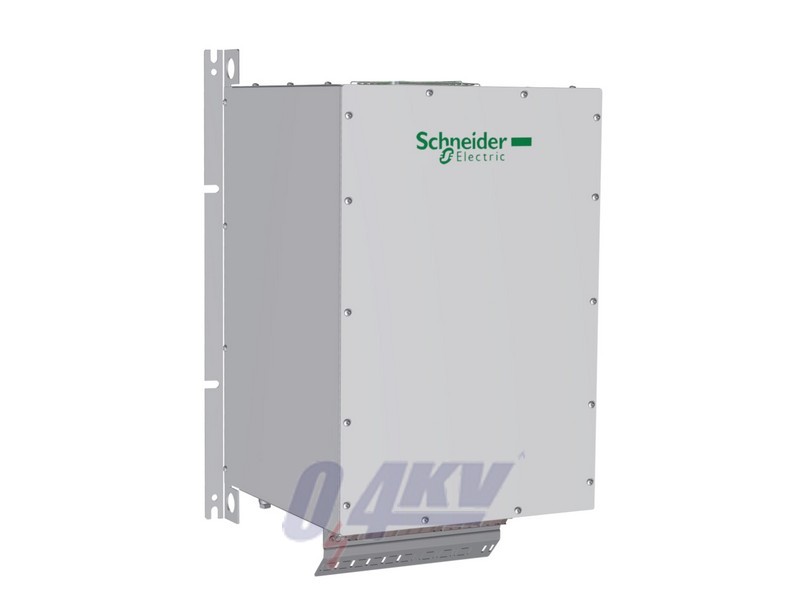

This passive filter is an option for variable speed drives of Altivar range. Its rated current is equal to 60A. It is used as an input filter in order to obtain total harmonic distortion of less than 10% or 5%. Its protection index is IP20. It weighs 44kg and its dimensions are, 378mm wide, 623.6mm high, 333mm deep. It is designed to be used for drives in the first environment (restricted distribution, domestic applications).
| Termékkép | url |
| Link | url RoHS Eur declaration url - VW3A46108 |
| REACH nyilatkozat | url |
