Listaár: 209 649 Ft
Készlet infó: Rendelésre
Cikkszám: XVC1B3HK
Gyártó:SCHNEIDER
Konfigurátor:Ugrás a konfigurátorokra
Adatlap:Gyártó weboldala

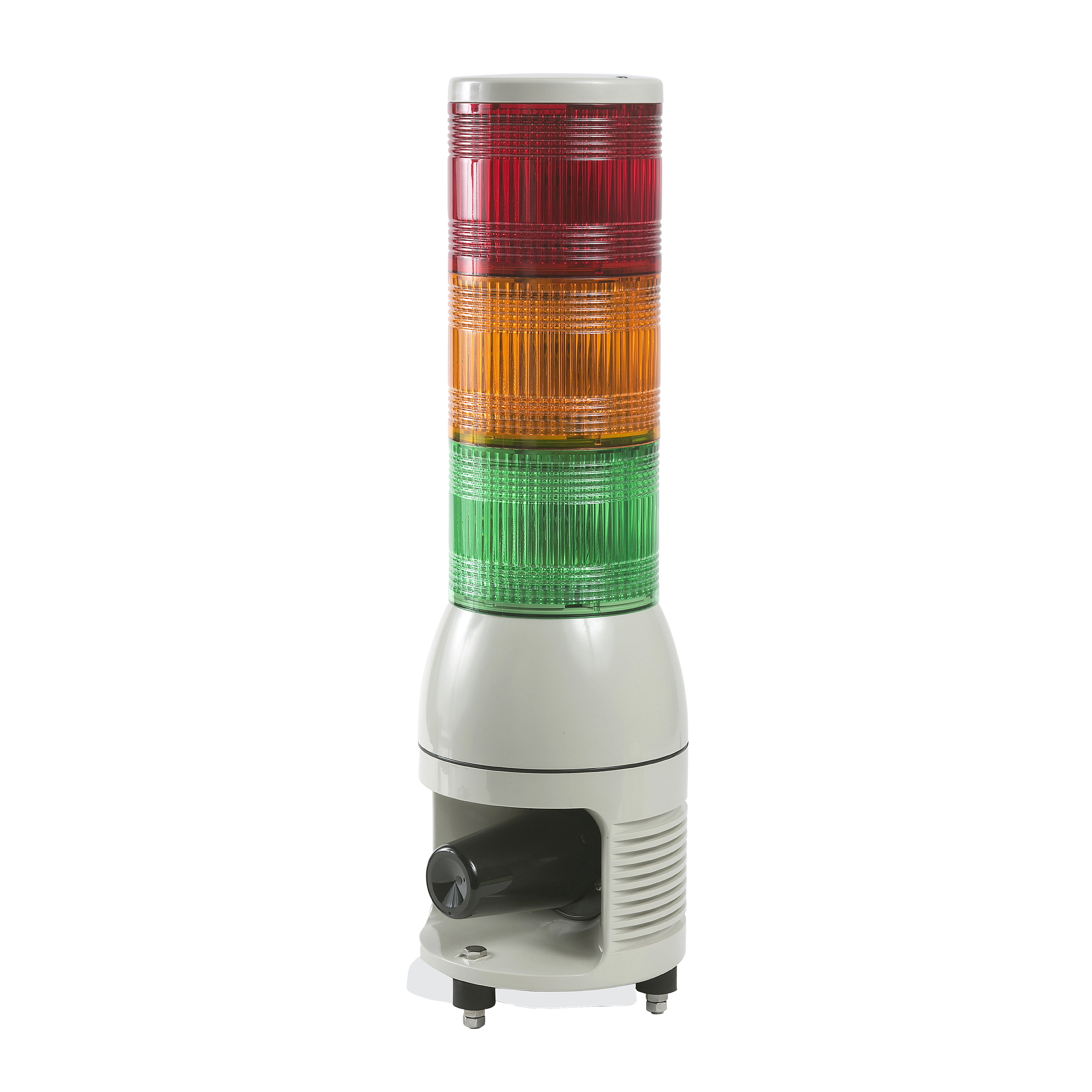

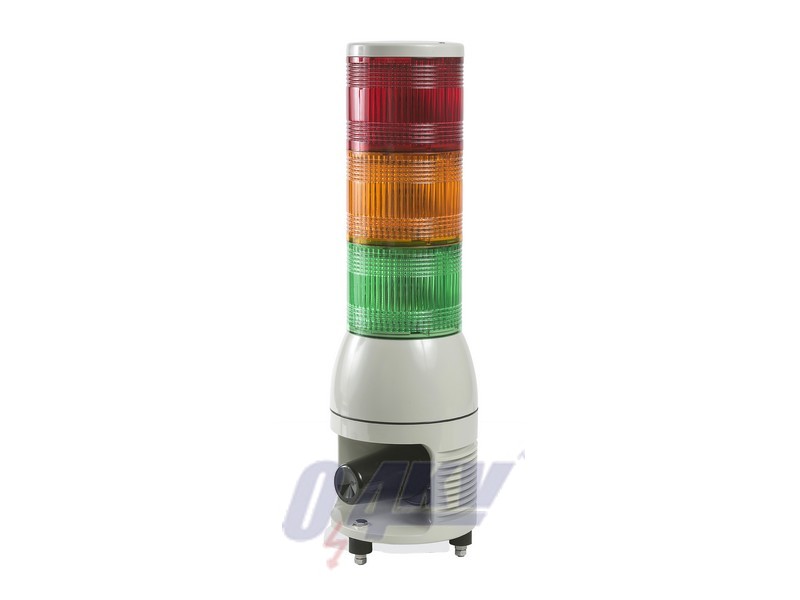

Megnevezés:Harmony XVC monolitikus Ø100 fényoszlop, 1 piros 1 narancs 1 zöld folyamatos/villogó, hangjelzővel, 24VDC
Csoport:Kisfeszültségű ipari komponensek
Osztály:Jelzőoszlop komplett (EC001042 - ETIM-7.0

Amennyiben kérdése van, kérjük keresse kollégánkat!
Megosztás:
Jelzőoszlop-elemek száma 3
Villanófény funkció igaz
Folytonos fény funkció igaz
Villanófény funkció igaz
Hangjelző funkció igaz
Működtető feszültség típusa AC
Névleges üzemi feszültség Ue 24 ... 24 V
Külső átmérő 100 mm
Védettségi fokozat (IP) IP54

This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 100mm. It is supplied pre-assembled and pre-cabled with 3 illuminated signaling units (red, orange, green), a siren and a base fitted with 3 screws for direct mounting on an horizontal surface (IP 54). Supply voltage is 24 V DC. It is designed for long distance indication of the operating states of a machine, either visually by means of illuminated signaling units visible through 360° (super bright LED for steady or flashing light), or audibly by means of a siren. It is more particularly designed for industrial applications and machine-tools.
