Listaár: 78 401 Ft
Készlet infó: Rendelésre
Cikkszám: XVC4B35S
Gyártó:SCHNEIDER
Konfigurátor:Ugrás a konfigurátorokra
Adatlap:Gyártó weboldala
Megnevezés:Harmony XVC monolitikus Ø40 fényoszlop, 1 piros 1 narancs 1 zöld folyamatos/villogó, hangjelzővel, tartócső, 24VAC/DC
Csoport:Kisfeszültségű ipari komponensek
Osztály:Jelzőoszlop komplett (EC001042 - ETIM-7.0

Amennyiben kérdése van, kérjük keresse kollégánkat!
Megosztás:
Jelzőoszlop-elemek száma 3
Villanófény funkció igaz
Folytonos fény funkció igaz
Villanófény funkció igaz
Hangjelző funkció igaz
Működtető feszültség típusa AC/DC
Névleges üzemi feszültség Ue 24 ... 24 V
Külső átmérő 40 mm
Védettségi fokozat (IP) IP54

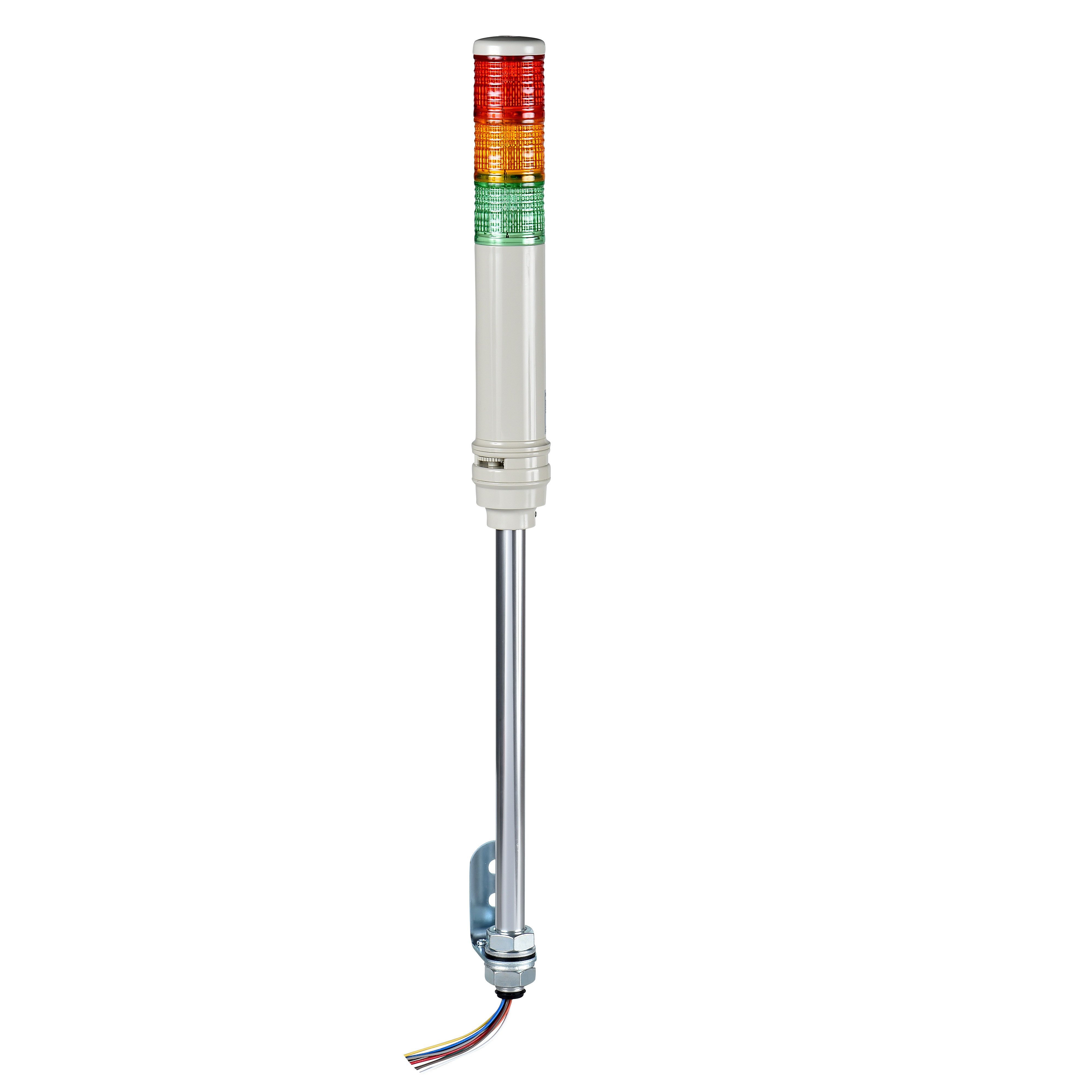

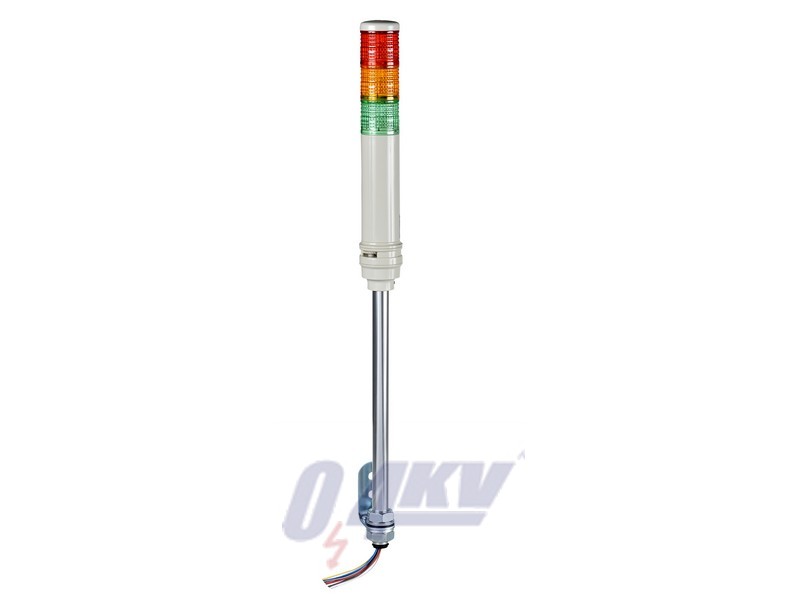

This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 40mm. It is supplied pre-assembled and pre-cabled with 3 illuminated signaling units (red, orange, green), a buzzer and a base mounted on a support tube with a bracket for mounting on horizontal (IP 54) or vertical surface (IP 23). Supply voltage is 24 V AC/DC. It is designed for long distance indication of the operating states of a machine, either visually by means of illuminated signaling units visible through 360° (super bright LED for steady or flashing light), or audibly by means of a buzzer. It is used mainly in the food-processing and medical sectors.
